جدول اشتال نبشی
تاریخ انتشار: ۹ اسفند ۱۴۰۱
تاریخ به روز رسانی: ۲۰ مرداد ۱۴۰۳
تاریخ به روز رسانی: ۲۰ مرداد ۱۴۰۳
مدت مطالعه: دقیقه
نویسنده: تیم محتوای مدیران آهن
نویسنده: تیم محتوای مدیران آهن
جدول اشتال یکی از منابعی است که بیش از همه مهندسان عمران یا سیویل به آن مراجعه می کنند. داشتن اطلاعات جامع در خصوص وزن، سطح مقطع، گشاور مقاوم و چند آیتم دیگر از جمله دلایلی است که مهندسان خصوصا آنهایی که در بحث طراحی مشغول به کار هستند به جدول اشتال مراجعه می نمایند. یکی از پروفیل های بسیار پر کاربرد در صنعت نبشی است که در زبان انگلیسی به آن Angle bar گفته می شود و از حرف L برای نمایش آن استفاده می کنند. نبشی از دو ضلع عمود بر هم تشکیل شده است. چنانچه طول این دو ضلع با هم برابر باشد به نبشی بال مساوی می گویند و اگر دو ضلع طول نابرابر داشته باشند نبشی بال نامساوی خوانده می شود.
| a X s mm |
r1 mm |
r2 mm |
F cm2 |
G kg/m |
e cm |
w cm |
v1 cm |
Jx=Jy cm4 |
Wx=Wy cm3 |
ix=iy cm |
Jξ cm4 |
iξ cm |
Jη cm |
Wη cm3 |
iη cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20x3 | 3.5 | 2.0 | 1.12 | 0.88 | 0.60 | 1.41 | 0.85 | 0.39 | 0.28 | 0.59 | 0.62 | 0.74 | 0.15 | 0.18 | 0.37 |
| 20x4 | 3.5 | 2.0 | 1.45 | 1.14 | 0.64 | 1.41 | 0.90 | 0.48 | 0.35 | 0.58 | 0.77 | 0.73 | 0.19 | 0.21 | 0.36 |
| 25x3 | 3.5 | 2.0 | 1.42 | 1.12 | 0.73 | 1.77 | 1.03 | 0.79 | 0.45 | 0.75 | 1.27 | 0.95 | 0.31 | 0.30 | 0.47 |
| 25x4 | 3.5 | 2.0 | 1.85 | 1.45 | 0.76 | 1.77 | 1.08 | 1.01 | 0.58 | 0.74 | 1.61 | 0.93 | 0.40 | 0.37 | 0.47 |
| 25x5 | 3.5 | 2.0 | 2.26 | 1.77 | 0.80 | 1.77 | 1.13 | 1.18 | 0.69 | 0.72 | 1.87 | 0.91 | 0.50 | 0.44 | 0.47 |
| 30x3 | 5.0 | 2.5 | 1.74 | 1.36 | 0.84 | 2.12 | 1.18 | 1.41 | 0.65 | 0.90 | 2.24 | 1.14 | 0.57 | 0.48 | 0.57 |
| 30x4 | 5.0 | 2.5 | 2.27 | 1.78 | 0.89 | 2.12 | 1.24 | 1.81 | 0.86 | 0.89 | 2.85 | 1.12 | 0.76 | 0.61 | 0.58 |
| 30x5 | 5.0 | 2.5 | 2.78 | 2.18 | 0.92 | 2.12 | 1.30 | 2.16 | 1.04 | 0.88 | 3.41 | 1.11 | 0.91 | 0.70 | 0.57 |
| 35x3 | 5.0 | 2.5 | 2.04 | 1.60 | 0.96 | 2.47 | 1.36 | 2.29 | 0.90 | 1.06 | 3.63 | 1.34 | 0.95 | 0.70 | 0.68 |
| 35x4 | 5.0 | 2.5 | 2.67 | 2.10 | 1.00 | 2.47 | 1.41 | 2.96 | 1.18 | 1.05 | 4.68 | 1.33 | 1.24 | 0.88 | 0.68 |
| 35x5 | 5.0 | 2.5 | 3.28 | 2.57 | 1.04 | 2.47 | 1.47 | 3.56 | 1.45 | 1.04 | 5.63 | 1.31 | 1.49 | 1.01 | 0.67 |
| 35x6 | 5.0 | 2.5 | 3.87 | 3.04 | 1.08 | 2.47 | 1.53 | 4.14 | 1.71 | 1.04 | 6.50 | 1.30 | 1.77 | 1.16 | 0.68 |
| 40x3 | 6.0 | 3.0 | 2.35 | 1.84 | 1.07 | 2.83 | 1.52 | 3.45 | 1.18 | 1.21 | 5.45 | 1.52 | 1.44 | 0.95 | 0.78 |
| 40x4 | 6.0 | 3.0 | 3.08 | 2.42 | 1.12 | 2.83 | 1.58 | 4.48 | 1.56 | 1.21 | 7.09 | 1.52 | 1.86 | 1.18 | 0.78 |
| 40x5 | 6.0 | 3.0 | 3.79 | 2.97 | 1.16 | 2.83 | 1.64 | 5.43 | 1.91 | 1.20 | 8.64 | 1.51 | 2.22 | 1.35 | 0.77 |
| 40x6 | 6.0 | 3.0 | 4.48 | 3.52 | 1.20 | 2.83 | 1.70 | 6.33 | 2.26 | 1.19 | 9.98 | 1.49 | 2.67 | 1.57 | 0.77 |
| 45x4 | 7.0 | 3.5 | 3.49 | 2.74 | 1.23 | 3.18 | 1.75 | 6.43 | 1.97 | 1.36 | 10.20 | 1.71 | 2.68 | 1.53 | 0.88 |
| 45x5 | 7.0 | 3.5 | 4.30 | 3.38 | 1.28 | 3.18 | 1.81 | 7.83 | 2.43 | 1.35 | 12.40 | 1.70 | 3.25 | 1.80 | 0.87 |
| 45x6 | 7.0 | 3.5 | 5.09 | 4.00 | 1.32 | 3.18 | 1.87 | 9.16 | 2.88 | 1.34 | 14.50 | 1.69 | 3.83 | 2.05 | 0.87 |
| 45x7 | 7.0 | 3.5 | 5.86 | 4.60 | 1.36 | 3.18 | 1.92 | 10.40 | 3.31 | 1.33 | 16.40 | 1.67 | 4.39 | 2.29 | 0.87 |
| 4x50 | 7.0 | 3.5 | 3.89 | 3.06 | 1.36 | 3.54 | 1.92 | 8.97 | 2.46 | 1.52 | 14.20 | 1.91 | 3.73 | 1.94 | 0.98 |
| 5x50 | 7.0 | 3.5 | 4.80 | 3.77 | 1.40 | 3.54 | 1.98 | 11.00 | 3.05 | 1.51 | 17.40 | 1.90 | 4.59 | 2.32 | 0.98 |
| 6x50 | 7.0 | 3.5 | 5.69 | 4.47 | 1.45 | 3.54 | 2.04 | 12.80 | 3.61 | 1.50 | 20.40 | 1.89 | 5.24 | 2.57 | 0.96 |
| 7x50 | 7.0 | 3.5 | 6.56 | 5.15 | 1.49 | 3.54 | 2.11 | 14.60 | 4.15 | 1.49 | 23.10 | 1.88 | 6.02 | 2.85 | 0.96 |
| 8x50 | 7.0 | 3.5 | 7.41 | 5.82 | 1.52 | 3.54 | 2.16 | 16.30 | 4.68 | 1.48 | 25.70 | 1.86 | 6.87 | 3.19 | 0.96 |
| 9x50 | 7.0 | 3.5 | 8.24 | 6.47 | 1.56 | 3.54 | 2.21 | 17.90 | 5.20 | 1.47 | 28.10 | 1.85 | 7.67 | 3.47 | 0.97 |
| 5x55 | 8.0 | 4.0 | 5.32 | 4.18 | 1.52 | 3.89 | 2.15 | 14.70 | 3.70 | 1.66 | 23.30 | 2.09 | 6.11 | 2.84 | 1.07 |
| 6x55 | 8.0 | 4.0 | 6.31 | 4.95 | 1.56 | 3.89 | 2.21 | 17.30 | 4.40 | 1.66 | 27.40 | 2.08 | 7.24 | 3.28 | 1.07 |
| 8x55 | 8.0 | 4.0 | 8.23 | 6.46 | 1.64 | 3.89 | 2.32 | 22.10 | 5.72 | 1.64 | 34.80 | 2.06 | 9.35 | 4.03 | 1.07 |
| 10x55 | 8.0 | 4.0 | 10.10 | 7.90 | 1.72 | 3.89 | 2.43 | 26.30 | 6.97 | 1.62 | 41.40 | 2.02 | 11.30 | 4.65 | 1.06 |
| 60x5 | 8.0 | 4.0 | 5.82 | 4.57 | 1.64 | 4.24 | 2.32 | 19.40 | 4.45 | 1.82 | 30.70 | 2.30 | 8.03 | 3.46 | 1.17 |
| 60x6 | 8.0 | 4.0 | 6.91 | 5.42 | 1.69 | 4.24 | 2.39 | 22.80 | 5.29 | 1.82 | 36.10 | 2.29 | 9.43 | 3.95 | 1.17 |
| 60x8 | 8.0 | 4.0 | 9.03 | 7.09 | 1.77 | 4.24 | 2.50 | 29.10 | 6.88 | 1.80 | 46.10 | 2.26 | 12.10 | 4.84 | 1.16 |
| 60x10 | 8.0 | 4.0 | 11.10 | 8.69 | 1.85 | 4.24 | 2.62 | 34.90 | 8.41 | 1.78 | 55.10 | 2.23 | 14.60 | 5.57 | 1.15 |
| 65x6 | 9.0 | 4.5 | 7.53 | 5.91 | 1.80 | 4.60 | 2.55 | 29.20 | 6.21 | 1.97 | 46.30 | 2.48 | 12.10 | 4.74 | 1.27 |
| 65x7 | 9.0 | 4.5 | 8.70 | 6.83 | 1.85 | 4.60 | 2.62 | 33.40 | 7.18 | 1.96 | 53.00 | 2.47 | 13.80 | 5.27 | 1.26 |
| 65x8 | 9.0 | 4.5 | 9.85 | 7.73 | 1.89 | 4.60 | 2.67 | 37.50 | 8.13 | 1.95 | 59.40 | 2.46 | 15.60 | 5.84 | 1.26 |
| 65x9 | 9.0 | 4.5 | 11.00 | 8.62 | 1.93 | 4.60 | 2.73 | 41.30 | 9.04 | 1.94 | 65.40 | 2.44 | 17.20 | 6.30 | 1.25 |
| 65x11 | 9.0 | 4.5 | 13.20 | 10.30 | 2.00 | 4.60 | 2.83 | 48.80 | 10.80 | 1.91 | 76.80 | 2.42 | 20.70 | 7.31 | 1.25 |
| 70x6 | 9.0 | 4.5 | 8.13 | 6.38 | 1.93 | 4.95 | 2.73 | 36.90 | 7.27 | 2.13 | 58.50 | 2.68 | 15.30 | 5.60 | 1.37 |
| 70x7 | 9.0 | 4.5 | 9.40 | 7.38 | 1.97 | 4.95 | 2.79 | 42.40 | 8.43 | 2.12 | 67.10 | 2.67 | 17.60 | 6.31 | 1.37 |
| 70x9 | 9.0 | 4.5 | 11.90 | 9.34 | 2.05 | 4.95 | 2.90 | 52.60 | 10.60 | 2.10 | 83.10 | 2.64 | 22.00 | 7.59 | 1.36 |
| 70x11 | 9.0 | 4.5 | 14.30 | 11.20 | 2.13 | 4.95 | 3.01 | 61.80 | 12.70 | 2.08 | 97.60 | 2.61 | 26.00 | 8.64 | 1.35 |
| 75x6 | 10.0 | 5.0 | 8.75 | 6.87 | 2.04 | 5.30 | 2.89 | 45.60 | 8.35 | 2.28 | 72.20 | 2.87 | 18.90 | 6.54 | 1.47 |
| 75x7 | 10.0 | 5.0 | 10.10 | 7.94 | 2.09 | 5.30 | 2.95 | 52.40 | 9.67 | 2.28 | 83.60 | 2.88 | 21.10 | 7.15 | 1.45 |
| 75x8 | 10.0 | 5.0 | 11.50 | 9.03 | 2.13 | 5.30 | 3.01 | 58.90 | 11.00 | 2.26 | 93.30 | 2.85 | 24.40 | 8.11 | 1.46 |
| 75x10 | 10.0 | 5.0 | 14.10 | 11.10 | 2.21 | 5.30 | 3.12 | 71.40 | 13.50 | 2.25 | 113.00 | 2.83 | 29.80 | 9.55 | 1.45 |
| 75x12 | 10.0 | 5.0 | 16.70 | 13.10 | 2.29 | 5.30 | 3.24 | 82.40 | 15.80 | 2.22 | 130.00 | 2.79 | 34.70 | 10.70 | 1.44 |
| 80x7 | 10.0 | 5.0 | 10.80 | 8.49 | 2.21 | 5.66 | 3.13 | 64.20 | 11.10 | 2.44 | 102.00 | 3.07 | 26.50 | 8.48 | 1.57 |
| 80x8 | 10.0 | 5.0 | 12.30 | 9.66 | 2.26 | 5.66 | 3.20 | 72.30 | 12.60 | 2.42 | 115.00 | 3.06 | 29.60 | 9.25 | 1.55 |
| 80x10 | 10.0 | 5.0 | 15.10 | 11.90 | 2.34 | 5.66 | 3.31 | 87.50 | 15.50 | 2.41 | 139.00 | 3.03 | 35.90 | 10.90 | 1.54 |
| 80x12 | 10.0 | 5.0 | 17.90 | 14.10 | 2.41 | 5.66 | 3.41 | 102.00 | 18.20 | 2.39 | 161.00 | 3.00 | 43.00 | 12.60 | 1.53 |
| 80x14 | 10.0 | 5.0 | 20.60 | 16.10 | 2.48 | 5.66 | 3.51 | 115.00 | 20.80 | 2.36 | 181.00 | 2.96 | 48.60 | 13.90 | 1.54 |
| 90x8 | 11.0 | 5.5 | 13.90 | 10.90 | 2.50 | 6.36 | 3.53 | 104.00 | 16.10 | 2.74 | 165.00 | 3.45 | 43.50 | 12.30 | 1.77 |
| 90x9 | 11.0 | 5.5 | 15.50 | 12.20 | 2.54 | 6.36 | 3.59 | 116.00 | 18.00 | 2.74 | 184.00 | 3.45 | 47.80 | 13.30 | 1.76 |
| 90x11 | 11.0 | 5.5 | 18.70 | 14.70 | 2.62 | 6.36 | 3.70 | 138.00 | 21.60 | 2.72 | 218.00 | 3.41 | 57.10 | 15.40 | 1.75 |
| 90x13 | 11.0 | 5.5 | 21.80 | 17.10 | 2.70 | 6.36 | 3.81 | 158.00 | 25.10 | 2.69 | 250.00 | 3.39 | 65.90 | 17.30 | 1.74 |
| 90x16 | 11.0 | 5.5 | 26.40 | 20.70 | 2.81 | 6.36 | 3.97 | 186.00 | 30.10 | 2.66 | 294.00 | 3.34 | 79.10 | 19.90 | 1.73 |
| 100x8 | 12.0 | 6.0 | 15.50 | 12.20 | 2.74 | 7.07 | 3.87 | 145.00 | 19.90 | 3.06 | 230.00 | 3.85 | 59.90 | 15.50 | 1.96 |
| 100x10 | 12.0 | 6.0 | 19.20 | 15.10 | 2.82 | 7.07 | 3.99 | 177.00 | 24.70 | 3.04 | 280.00 | 3.82 | 73.30 | 18.40 | 1.95 |
| 100x12 | 12.0 | 6.0 | 22.70 | 17.80 | 2.90 | 7.07 | 4.10 | 207.00 | 29.20 | 3.02 | 328.00 | 3.80 | 86.20 | 21.00 | 1.95 |
| 100x14 | 12.0 | 6.0 | 26.20 | 20.60 | 2.98 | 7.07 | 4.21 | 235.00 | 33.50 | 3.00 | 372.00 | 3.77 | 98.30 | 23.40 | 1.94 |
| 100x16 | 12.0 | 6.0 | 29.60 | 23.20 | 3.06 | 7.07 | 4.32 | 262.00 | 37.70 | 2.97 | 413.00 | 3.74 | 111.00 | 25.60 | 1.93 |
| 100x20 | 12.0 | 6.0 | 36.20 | 28.40 | 3.20 | 7.07 | 4.53 | 311.00 | 45.70 | 2.93 | 487.00 | 3.67 | 135.00 | 29.80 | 1.93 |
| 110x10 | 12.0 | 6.0 | 21.20 | 16.60 | 3.07 | 7.78 | 4.34 | 239.00 | 30.10 | 3.36 | 379.00 | 4.23 | 98.60 | 22.70 | 2.16 |
| 110x12 | 12.0 | 6.0 | 25.10 | 19.70 | 3.15 | 7.78 | 4.45 | 280.00 | 35.70 | 3.34 | 444.00 | 4.21 | 116.00 | 26.10 | 2.15 |
| 110x14 | 12.0 | 6.0 | 29.00 | 22.80 | 3.21 | 7.78 | 4.54 | 319.00 | 41.00 | 3.32 | 505.00 | 4.18 | 133.00 | 29.30 | 2.14 |
| 120x10 | 13.0 | 6.5 | 25.40 | 19.90 | 3.36 | 8.49 | 4.75 | 341.00 | 39.50 | 3.66 | 541.00 | 4.62 | 140.00 | 29.50 | 2.35 |
| 120x12 | 13.0 | 6.5 | 27.50 | 21.60 | 3.40 | 8.49 | 4.80 | 368.00 | 42.70 | 3.65 | 584.00 | 4.60 | 152.00 | 31.60 | 2.35 |
| 120x13 | 13.0 | 6.5 | 29.70 | 23.30 | 3.44 | 8.49 | 4.86 | 394.00 | 46.00 | 3.64 | 625.00 | 4.59 | 162.00 | 33.30 | 2.34 |
| 120x15 | 13.0 | 6.5 | 33.90 | 26.60 | 3.51 | 8.49 | 4.96 | 446.00 | 52.50 | 3.63 | 705.00 | 4.56 | 186.00 | 37.50 | 2.34 |
| 130x12 | 14.0 | 7.0 | 30.00 | 23.60 | 3.64 | 9.19 | 5.15 | 472.00 | 50.40 | 3.97 | 750.00 | 5.00 | 194.00 | 37.70 | 2.54 |
| 130x14 | 14.0 | 7.0 | 34.70 | 27.20 | 3.72 | 9.19 | 5.26 | 540.00 | 58.20 | 3.94 | 857.00 | 4.97 | 223.00 | 42.40 | 2.53 |
| 130x16 | 14.0 | 7.0 | 39.30 | 30.90 | 3.80 | 9.19 | 5.37 | 605.00 | 65.80 | 3.92 | 959.00 | 4.94 | 251.00 | 46.70 | 2.52 |
| 140x13 | 15.0 | 7.5 | 35.00 | 27.50 | 3.92 | 9.90 | 5.54 | 638.00 | 63.30 | 4.27 | 1010.00 | 5.38 | 262.00 | 47.30 | 2.74 |
| 140x15 | 15.0 | 7.5 | 40.00 | 31.40 | 4.00 | 9.90 | 5.66 | 723.00 | 72.30 | 4.25 | 1150.00 | 5.36 | 298.00 | 52.70 | 2.73 |
| 150x12 | 16.0 | 8.0 | 34.80 | 27.30 | 4.12 | 10.60 | 5.38 | 737.00 | 67.70 | 4.60 | 1170.00 | 5.80 | 303.00 | 52.00 | 2.95 |
| 150x14 | 16.0 | 8.0 | 40.30 | 31.60 | 4.21 | 10.60 | 5.95 | 845.00 | 78.20 | 4.58 | 1340.00 | 5.77 | 347.00 | 58.30 | 2.94 |
| 150x15 | 16.0 | 8.0 | 43.00 | 33.80 | 4.25 | 10.60 | 6.01 | 898.00 | 83.50 | 4.57 | 1430.00 | 5.76 | 370.00 | 61.60 | 2.93 |
| 150x16 | 16.0 | 8.0 | 45.70 | 35.90 | 4.29 | 10.60 | 6.07 | 949.00 | 88.70 | 4.56 | 1510.00 | 5.74 | 391.00 | 64.40 | 2.93 |
| 150x18 | 16.0 | 8.0 | 51.00 | 40.10 | 4.36 | 10.60 | 6.17 | 1050.00 | 99.30 | 4.54 | 1670.00 | 5.70 | 438.00 | 71.00 | 2.93 |
| 150x120 | 16.0 | 8.0 | 56.30 | 44.20 | 4.44 | 10.60 | 6.28 | 1150.00 | 109.00 | 4.51 | 1820.00 | 5.68 | 477.00 | 76.00 | 2.91 |
| 160x15 | 17.0 | 8.5 | 46.10 | 36.20 | 4.49 | 11.30 | 6.35 | 1100.00 | 95.60 | 4.88 | 1750.00 | 6.15 | 453.00 | 71.30 | 3.14 |
| 160x17 | 17.0 | 8.5 | 51.80 | 40.70 | 4.57 | 11.30 | 6.46 | 1230.00 | 108.00 | 4.86 | 1950.00 | 6.13 | 506.00 | 78.30 | 3.13 |
| 160x19 | 17.0 | 8.5 | 57.50 | 45.10 | 4.65 | 11.30 | 6.58 | 1350.00 | 118.00 | 4.84 | 2140.00 | 6.10 | 558.00 | 84.80 | 3.12 |
| 180x16 | 18.0 | 9.0 | 55.40 | 43.50 | 5.02 | 12.70 | 7.11 | 1680.00 | 130.00 | 5.51 | 2690.00 | 6.96 | 679.00 | 95.50 | 3.50 |
| 180x18 | 18.0 | 9.0 | 61.90 | 48.60 | 5.10 | 12.70 | 7.22 | 1870.00 | 145.00 | 5.49 | 2970.00 | 6.93 | 757.00 | 105.00 | 3.49 |
| 180x20 | 18.0 | 9.0 | 68.40 | 53.70 | 5.18 | 12.70 | 7.33 | 2040.00 | 160.00 | 5.47 | 3260.00 | 6.90 | 830.00 | 113.00 | 3.49 |
| 180x22 | 18.0 | 9.0 | 74.70 | 58.60 | 5.26 | 12.70 | 7.44 | 2210.00 | 174.00 | 5.44 | 3510.00 | 6.86 | 918.00 | 123.00 | 3.50 |
| 200x16 | 18.0 | 9.0 | 61.80 | 48.50 | 5.52 | 14.10 | 7.80 | 2340.00 | 162.00 | 6.15 | 3740.00 | 7.78 | 943.00 | 121.00 | 3.91 |
| 200x18 | 18.0 | 9.0 | 69.10 | 54.30 | 5.60 | 14.10 | 7.92 | 2600.00 | 181.00 | 6.13 | 4150.00 | 7.75 | 1050.00 | 133.00 | 3.90 |
| 200x20 | 18.0 | 9.0 | 76.40 | 59.90 | 5.68 | 14.10 | 8.04 | 2850.00 | 199.00 | 6.11 | 4540.00 | 7.72 | 1160.00 | 144.00 | 3.89 |
| 200x24 | 18.0 | 9.0 | 90.60 | 71.10 | 5.84 | 14.10 | 8.26 | 3330.00 | 235.00 | 6.06 | 5280.00 | 7.64 | 1380.00 | 167.00 | 3.90 |
| 200x28 | 18.0 | 9.0 | 105.00 | 82.00 | 5.99 | 14.10 | 8.47 | 3780.00 | 270.00 | 6.02 | 5990.00 | 7.57 | 1580.00 | 186.00 | 3.89 |

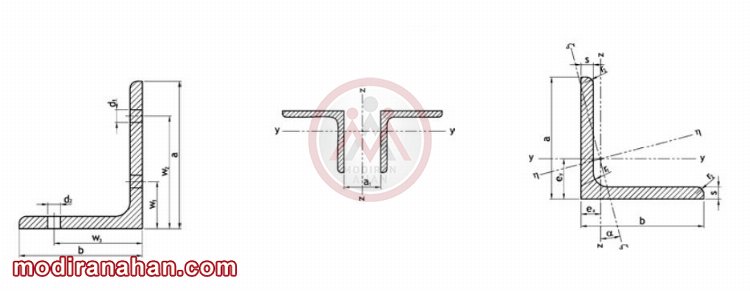

| a X b X s mm |
r1 mm |
r2 mm |
F cm2 |
G kg/m |
ex cm |
ey cm |
tan α | Jx cm4 |
Wx cm3 |
ix cm |
Jy cm4 |
Wy cm3 |
iy cm |
Jξ cm4 |
iξ cm |
Jη cm4 |
iη cm |
a1 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20x3x30 | 3.5 | 2.0 | 1.42 | 1.11 | 0.99 | 0.50 | 0.431 | 1.25 | 0.62 | 0.94 | 0.44 | 0.29 | 0.56 | 1.43 | 1.00 | 0.25 | 0.42 | 5.2 |
|
20x4x30 |
3.5 | 2.0 | 1.85 | 1.45 | 1.03 | 0.54 | 0.423 | 1.59 | 0.81 | 0.93 | 0.55 | 0.38 | 0.55 | 1.81 | 0.99 | 0.33 | 0.42 | 4.2 |
| 20x3x40 | 3.5 | 2.0 | 1.72 | 1.35 | 1.43 | 0.44 | 0.259 | 2.79 | 1.08 | 1.27 | 0.47 | 0.30 | 0.52 | 2.96 | 1.31 | 0.30 | 0.42 | 14.6 |
| 20x4x40 | 3.5 | 2.0 | 2.25 | 1.77 | 1.47 | 0.48 | 0.252 | 3.59 | 1.42 | 1.26 | 0.60 | 0.39 | 0.52 | 3.79 | 1.30 | 0.39 | 0.42 | 13.8 |
| 30x3x45 | 4.5 | 2.0 | 2.19 | 1.72 | 1.43 | 0.70 | 0.436 | 4.47 | 1.46 | 1.43 | 1.60 | 0.70 | 0.86 | 5.15 | 1.53 | 0.93 | 0.65 | 9.0 |
| 30x4x45 | 4.5 | 2.0 | 2.87 | 2.25 | 1.48 | 0.74 | 0.436 | 5.78 | 1.91 | 1.42 | 2.05 | 0.91 | 0.85 | 6.65 | 1.52 | 1.18 | 0.64 | 18.0 |
| 30x5x45 | 4.5 | 2.0 | 3.53 | 2.77 | 1.52 | 0.78 | 0.430 | 6.99 | 2.35 | 1.41 | 2.47 | 1.11 | 0.84 | 8.02 | 1.51 | 1.44 | 0.64 | 7.2 |
| 30x5x50 | 4.5 | 2.0 | 3.78 | 2.96 | 1.73 | 0.74 | 0.353 | 9.41 | 2.88 | 1.58 | 2.54 | 1.12 | 0.82 | 10.40 | 1.66 | 1.56 | 0.64 | 12.2 |
| 40x4x50 | 4.0 | 2.0 | 3.46 | 2.71 | 1.52 | 1.03 | 0.629 | 8.54 | 2.47 | 1.57 | 4.86 | 1.64 | 1.19 | 10.90 | 1.78 | 2.46 | 0.84 | __ |
| 40x5x50 | 4.0 | 2.0 | 4.27 | 3.35 | 1.56 | 1.07 | 0.625 | 10.40 | 3.02 | 1.56 | 5.89 | 2.01 | 1.18 | 13.30 | 1.76 | 3.02 | 0.84 | __ |
| 30x5x60 | 6.0 | 3.0 | 4.29 | 3.37 | 2.15 | 0.68 | 0.256 | 15.60 | 4.04 | 1.90 | 2.60 | 1.12 | 0.78 | 16.50 | 1.96 | 1.69 | 0.63 | 21.4 |
| 30x7x60 | 6.0 | 3.0 | 5.85 | 4.59 | 2.24 | 0.76 | 0.248 | 20.70 | 5.50 | 1.88 | 3.41 | 1.52 | 0.76 | 21.80 | 1.93 | 2.28 | 0.62 | 19.2 |
| 40x5x60 | 6.0 | 3.0 | 4.79 | 3.76 | 1.96 | 0.97 | 0.437 | 17.20 | 4.25 | 1.89 | 6.11 | 2.02 | 1.13 | 19.80 | 2.03 | 3.50 | 0.86 | 11.2 |
| 40x6x60 | 6.0 | 3.0 | 5.68 | 4.46 | 2.00 | 1.01 | 0.433 | 20.10 | 5.03 | 1.88 | 7.12 | 2.38 | 1.12 | 23.10 | 2.02 | 4.12 | 0.85 | 10.2 |
| 40x7x60 | 6.0 | 3.0 | 6.55 | 5.14 | 2.04 | 1.05 | 0.429 | 23.00 | 5.79 | 1.87 | 8.07 | 2.74 | 1.11 | 26.30 | 2.00 | 4.73 | 0.85 | 9.2 |
| 50x5x65 | 6.5 | 3.5 | 5.54 | 4.35 | 1.99 | 1.25 | 0.583 | 23.10 | 5.11 | 2.04 | 11.90 | 3.18 | 1.47 | 28.80 | 2.28 | 6.21 | 1.06 | 3.6 |
| 50x7x65 | 6.5 | 3.5 | 7.60 | 5.97 | 2.07 | 1.33 | 0.574 | 31.00 | 6.99 | 2.02 | 15.80 | 4.31 | 1.44 | 38.40 | 2.25 | 8.37 | 1.05 | 1.8 |
| 50x9x65 | 6.5 | 3.5 | 9.58 | 7.52 | 2.15 | 1.41 | 0.567 | 38.20 | 8.77 | 2.00 | 19.40 | 5.39 | 1.42 | 47.00 | 2.22 | 10.50 | 1.05 | __ |
| 50x5x75 | 6.5 | 3.5 | 6.04 | 4.74 | 2.40 | 1.17 | 0.437 | 34.40 | 6.74 | 2.39 | 12.30 | 3.21 | 1.43 | 39.60 | 2.56 | 7.10 | 1.08 | 15.0 |
| 50x7x75 | 6.5 | 3.5 | 8.30 | 6.51 | 2.48 | 1.25 | 0.433 | 46.40 | 9.24 | 2.36 | 16.50 | 4.39 | 1.41 | 53.30 | 2.53 | 9.56 | 1.07 | 13.0 |
| 50x9x75 | 6.5 | 3.5 | 10.50 | 8.23 | 2.56 | 1.32 | 0.427 | 57.40 | 11.60 | 2.34 | 20.20 | 5.49 | 1.39 | 65.70 | 2.50 | 11.90 | 1.07 | 11.0 |
| 55x5x75 | 7.0 | 3.5 | 6.30 | 4.95 | 2.31 | 1.33 | 0.530 | 35.50 | 6.84 | 2.37 | 16.20 | 3.89 | 1.60 | 43.10 | 2.61 | 8.68 | 1.17 | 8.4 |
| 55x7x75 | 7.0 | 3.5 | 8.66 | 6.80 | 2.40 | 1.41 | 0.527 | 47.90 | 9.39 | 2.35 | 21.80 | 5.32 | 1.59 | 57.90 | 2.59 | 11.80 | 1.17 | 6.6 |
| 55x9x75 | 7.0 | 3.5 | 10.90 | 8.59 | 2.47 | 1.48 | 0.518 | 59.40 | 11.80 | 2.33 | 26.80 | 6.66 | 1.57 | 71.30 | 2.55 | 14.80 | 1.16 | 5.0 |
| 40x6x80 | 7.0 | 3.5 | 6.89 | 5.41 | 2.85 | 0.88 | 0.259 | 44.90 | 8.73 | 2.55 | 7.59 | 2.44 | 1.05 | 47.60 | 2.63 | 4.90 | 0.84 | 29.0 |
| 40x8x80 | 7.0 | 3.5 | 9.01 | 7.07 | 2.94 | 0.95 | 0.253 | 57.60 | 11.40 | 2.53 | 9.68 | 3.18 | 1.04 | 60.90 | 2.60 | 6.41 | 0.84 | 27.2 |
| 60x6x80 | 8.0 | 4.0 | 8.41 | 6.60 | 2.39 | 1.65 | 0.649 | 52.80 | 9.41 | 2.51 | 31.20 | 6.44 | 1.93 | 68.50 | 2.85 | 15.60 | 1.36 | __ |
| 65x6x80 | 8.0 | 4.0 | 11.00 | 8.66 | 2.47 | 1.73 | 0.645 | 68.10 | 12.30 | 2.49 | 40.10 | 8.41 | 1.91 | 88.00 | 2.82 | 20.30 | 1.36 | __ |
| 65x10x80 | 8.0 | 4.0 | 13.60 | 10.70 | 2.55 | 1.81 | 0.640 | 82.20 | 15.10 | 2.46 | 48.30 | 10.30 | 1.89 | 106.00 | 2.79 | 24.80 | 1.35 | __ |
| 60x6x90 | 7.0 | 3.5 | 8.69 | 6.82 | 2.89 | 1.41 | 0.442 | 71.70 | 11.70 | 2.87 | 25.80 | 5.61 | 1.72 | 82.80 | 3.09 | 14.60 | 1.30 | 17.8 |
| 60x8x90 | 7.0 | 3.5 | 11.40 | 8.96 | 2.97 | 1.49 | 0.437 | 92.50 | 15.40 | 2.85 | 33.00 | 7.31 | 1.70 | 107.00 | 3.06 | 19.00 | 1.29 | 16.0 |
| 75x7x90 | 8.5 | 4.5 | 11.10 | 8.74 | 2.67 | 1.93 | 0.683 | 88.10 | 13.90 | 2.81 | 55.50 | 9.98 | 2.23 | 117.00 | 3.24 | 27.10 | 1.56 | __ |
| 50x6x100 | 9.0 | 4.5 | 8.73 | 6.85 | 3.49 | 1.04 | 0.263 | 89.70 | 13.80 | 3.20 | 15.30 | 3.86 | 1.32 | 95.20 | 3.30 | 9.78 | 1.06 | 37.6 |
| 50x8x100 | 9.0 | 4.5 | 11.50 | 8.99 | 3.59 | 1.13 | 0.258 | 116.00 | 18.00 | 3.18 | 19.50 | 5.04 | 1.31 | 123.00 | 3.28 | 12.60 | 1.05 | 35.4 |
| 50x10x100 | 9.0 | 4.5 | 14.10 | 11.10 | 3.67 | 1.20 | 0.252 | 141.00 | 22.20 | 3.16 | 23.40 | 6.17 | 1.29 | 149.00 | 3.25 | 15.50 | 1.04 | 33.8 |
| 65x7x100 | 10.0 | 5.0 | 11.20 | 8.77 | 3.23 | 1.51 | 0.419 | 113.00 | 16.60 | 3.17 | 37.60 | 7.54 | 1.84 | 128.00 | 3.39 | 21.60 | 1.39 | 21.8 |
| 65x9x100 | 10.0 | 5.0 | 14.20 | 11.10 | 3.32 | 1.59 | 0.415 | 141.00 | 21.00 | 3.15 | 46.70 | 9.52 | 1.82 | 160.00 | 3.36 | 27.20 | 1.39 | 19.8 |
| 65x11x100 | 10.0 | 5.0 | 17.10 | 13.40 | 3.40 | 1.67 | 0.410 | 167.00 | 25.30 | 3.13 | 55.10 | 11.40 | 1.80 | 190.00 | 3.34 | 32.60 | 1.38 | 17.8 |
| 75x7x100 | 10.0 | 5.0 | 11.90 | 9.32 | 3.06 | 1.83 | 0.553 | 118.00 | 17.00 | 3.15 | 56.90 | 10.00 | 2.19 | 145.00 | 3.49 | 30.10 | 1.59 | 8.8 |
| 75x9x100 | 10.0 | 5.0 | 15.10 | 11.80 | 3.15 | 1.91 | 0.549 | 148.00 | 21.50 | 3.13 | 71.00 | 12.70 | 2.17 | 181.00 | 3.47 | 37.80 | 1.59 | 7.0 |
| 75x10x100 | 10.0 | 5.0 | 18.20 | 14.30 | 3.23 | 1.99 | 0.545 | 176.00 | 25.90 | 3.11 | 84.00 | 15.30 | 2.15 | 214.00 | 3.44 | 45.40 | 1.58 | 5.2 |
| 80x8x120 | 11.0 | 5.5 | 15.50 | 12.20 | 3.83 | 1.87 | 0.441 | 226.00 | 27.60 | 3.82 | 80.80 | 13.20 | 2.29 | 261.00 | 4.10 | 45.80 | 1.72 | 24.0 |
| 80x10x120 | 11.0 | 5.5 | 19.10 | 15.00 | 3.92 | 1.95 | 0.438 | 276.00 | 34.10 | 3.80 | 98.10 | 16.20 | 2.27 | 318.00 | 4.07 | 56.10 | 1.71 | 22.2 |
| 80x12x120 | 11.0 | 5.5 | 22.70 | 17.80 | 4.00 | 2.03 | 0.433 | 323.00 | 40.40 | 3.77 | 114.00 | 19.10 | 2.25 | 371.00 | 4.04 | 66.10 | 1.71 | 20.2 |
| 80x14x120 | 11.0 | 5.5 | 26.20 | 20.50 | 4.08 | 2.10 | 0.429 | 368.00 | 46.40 | 3.75 | 130.00 | 22.00 | 2.23 | 421.00 | 4.01 | 75.80 | 1.70 | 18.4 |
| 65x8x130 | 11.0 | 5.5 | 15.10 | 11.90 | 4.56 | 1.37 | 0.263 | 263.00 | 31.10 | 4.17 | 44.80 | 8.72 | 1.72 | 280.00 | 4.31 | 28.60 | 1.38 | 48.6 |
| 65x10x130 | 11.0 | 5.5 | 18.60 | 14.60 | 4.65 | 1.45 | 0.259 | 321.00 | 38.40 | 4.15 | 54.20 | 10.70 | 1.71 | 340.00 | 4.27 | 35.00 | 1.37 | 46.8 |
| 65x12x130 | 11.0 | 5.5 | 22.10 | 17.30 | 4.74 | 1.53 | 0.255 | 376.00 | 45.50 | 4.12 | 63.00 | 12.70 | 1.69 | 397.00 | 4.24 | 41.20 | 1.37 | 44.6 |
| 75x8x130 | 10.5 | 5.5 | 15.90 | 12.50 | 4.36 | 1.65 | 0.339 | 276.00 | 31.90 | 4.17 | 68.30 | 11.70 | 2.08 | 303.00 | 4.37 | 41.30 | 1.61 | 39.2 |
| 75x10x130 | 10.5 | 5.5 | 19.60 | 15.40 | 4.45 | 1.73 | 0.336 | 337.00 | 39.40 | 4.14 | 82.90 | 14.40 | 2.06 | 369.00 | 4.34 | 50.60 | 1.61 | 37.4 |
| 75x12x130 | 10.5 | 5.5 | 23.30 | 18.30 | 4.53 | 1.81 | 0.332 | 395.00 | 46.60 | 4.12 | 96.50 | 17.00 | 2.04 | 432.00 | 4.31 | 59.60 | 1.60 | 35.4 |
| 90x10x130 | 12.0 | 6.0 | 21.20 | 16.60 | 4.15 | 2.18 | 0.472 | 358.00 | 40.50 | 4.11 | 141.00 | 20.60 | 2.58 | 420.00 | 4.46 | 78.50 | 1.93 | 20.4 |
| 90x12x130 | 12.0 | 6.0 | 25.10 | 19.70 | 4.24 | 2.26 | 0.468 | 420.00 | 48.00 | 4.09 | 165.00 | 24.40 | 2.56 | 492.00 | 4.43 | 92.60 | 1.92 | 18.6 |
| 75x9x150 | 10.5 | 5.5 | 19.50 | 15.30 | 5.28 | 1.57 | 0.265 | 455.00 | 46.80 | 4.83 | 78.30 | 13.20 | 2.00 | 484.00 | 4.98 | 50.00 | 1.60 | 56.4 |
| 75x11x150 | 10.5 | 5.5 | 23.60 | 18.60 | 5.37 | 1.65 | 0.261 | 545.00 | 56.60 | 4.80 | 93.00 | 15.90 | 1.98 | 578.00 | 4.95 | 59.80 | 1.59 | 54.4 |
| 90x10x150 | 12.5 | 6.5 | 23.20 | 18.20 | 4.99 | 2.03 | 0.360 | 532.00 | 53.10 | 4.79 | 145.00 | 20.90 | 2.51 | 589.00 | 5.05 | 88.00 | 1.95 | 41.0 |
| 90x12x150 | 12.5 | 6.5 | 27.50 | 21.60 | 5.08 | 2.11 | 0.358 | 626.00 | 63.10 | 4.77 | 170.00 | 24.70 | 2.49 | 693.00 | 5.02 | 103.00 | 1.94 | 39.2 |
| 100x10x150 | 13.0 | 6.5 | 24.20 | 19.00 | 4.80 | 2.34 | 0.442 | 552.00 | 54.10 | 4.78 | 198.00 | 25.80 | 2.86 | 637.00 | 5.13 | 112.00 | 2.15 | 29.8 |
| 100x12x150 | 13.0 | 6.5 | 28.70 | 22.60 | 4.89 | 2.42 | 0.439 | 650.00 | 64.20 | 4.76 | 232.00 | 30.60 | 2.84 | 749.00 | 5.10 | 132.00 | 2.15 | 28.0 |
| 100x14x150 | 13.0 | 6.5 | 33.20 | 26.10 | 4.97 | 2.50 | 0.435 | 744.00 | 74.10 | 4.73 | 264.00 | 35.20 | 2.82 | 856.00 | 5.07 | 152.00 | 2.14 | 26.2 |
| 80x10x160 | 13.0 | 6.5 | 23.20 | 18.20 | 5.63 | 1.69 | 0.263 | 611.00 | 58.90 | 5.14 | 104.00 | 16.50 | 2.12 | 648.00 | 5.29 | 67.00 | 1.70 | 59.7 |
| 80x12x160 | 13.0 | 6.5 | 27.50 | 21.60 | 5.72 | 1.77 | 0.259 | 720.00 | 70.00 | 5.11 | 122.00 | 19.60 | 2.10 | 763.00 | 5.26 | 78.90 | 1.69 | 57.9 |
| 80x14x160 | 13.0 | 6.5 | 31.80 | 25.00 | 5.81 | 1.85 | 0.256 | 823.00 | 80.70 | 5.09 | 139.00 | 22.50 | 2.09 | 871.00 | 5.23 | 90.50 | 1.69 | 55.8 |
| 90x10x180 | 14.0 | 7.0 | 26.20 | 20.60 | 6.28 | 1.85 | 0.262 | 880.00 | 75.10 | 5.80 | 151.00 | 21.20 | 2.40 | 934.00 | 5.97 | 97.40 | 1.93 | 69.0 |
| 90x12x180 | 14.0 | 7.0 | 31.20 | 24.50 | 6.37 | 1.93 | 0.261 | 1040.00 | 89.30 | 5.77 | 177.00 | 25.10 | 2.38 | 1100.00 | 5.94 | 114.00 | 1.92 | 67.0 |
| 90x14x180 | 14.0 | 7.0 | 36.10 | 28.30 | 6.46 | 2.01 | 0.259 | 1190.00 | 103.00 | 5.75 | 202.00 | 28.90 | 2.37 | 1260.00 | 5.92 | 131.00 | 1.91 | 65.0 |
| 100x10x200 | 15.0 | 7.5 | 29.20 | 23.00 | 6.93 | 2.01 | 0.266 | 1220.00 | 93.20 | 6.46 | 210.00 | 26.30 | 2.68 | 1300.00 | 6.66 | 133.00 | 2.14 | 77.4 |
| 100x12x200 | 15.0 | 7.5 | 34.80 | 27.30 | 7.03 | 2.10 | 0.264 | 1440.00 | 111.00 | 6.43 | 247.00 | 31.30 | 2.67 | 1530.00 | 6.63 | 158.00 | 2.13 | 75.2 |
| 100x14x200 | 15.0 | 7.5 | 40.30 | 31.60 | 7.12 | 2.18 | 0.262 | 1650.00 | 128.00 | 6.41 | 282.00 | 36.10 | 2.65 | 1760.00 | 6.60 | 181.00 | 2.12 | 73.0 |
| 100x16x200 | 15.0 | 7.5 | 45.70 | 35.90 | 7.20 | 2.26 | 0.259 | 1860.00 | 145.00 | 6.38 | 316.00 | 40.80 | 2.63 | 1970.00 | 6.57 | 204.00 | 2.11 | 71.0 |
| 90x10x250 | 15.0 | 7.5 | 33.20 | 26.10 | 9.45 | 1.56 | 0.154 | 2170.00 | 140.00 | 8.08 | 161.00 | 21.70 | 2.20 | 2220.00 | 8.17 | 112.00 | 1.84 | 126.0 |
| 90x12x250 | 15.0 | 7.5 | 39.60 | 31.10 | 9.55 | 1.65 | 0.153 | 2570.00 | 166.00 | 8.05 | 189.00 | 25.80 | 2.19 | 2630.00 | 8.14 | 132.00 | 1.83 | 124.0 |
| 90x14x250 | 15.0 | 7.5 | 45.90 | 36.00 | 9.65 | 1.73 | 0.152 | 2960.00 | 192.00 | 8.03 | 216.00 | 29.70 | 2.17 | 3020.00 | 8.11 | 152.00 | 1.82 | 120.0 |
| 90x16x250 | 15.0 | 7.5 | 52.10 | 40.90 | 9.74 | 1.81 | 0.150 | 3330.00 | 218.00 | 8.00 | 242.00 | 33.60 | 2.16 | 3400.00 | 8.08 | 171.00 | 1.81 | 118.0 |
